Hive Wiring Diagram Vaillant Combi - Hive Heating Dual Channel Vaillant Ecotec Plus 618 Setup Not Working Diynot Forums / This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler !
Hive Wiring Diagram Vaillant Combi - Hive Heating Dual Channel Vaillant Ecotec Plus 618 Setup Not Working Diynot Forums / This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler !. 693 x 749 png 105 кб. The example shown below represents a common vaillant combi boiler. Remember to make sure the mains supply is. Vaillant ecofit sustain 825 manual online: 324 x 412 jpeg 28 кб.
Remember to make sure the mains supply is. This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler ! Vaillant combi boiler thermostat wiring. I don't think the wires from the power with the red led come into it at all as that stays on all. Or just want to know about.
Bv 6112 Wiring A Thermostat To A Vaillant Boiler Schematic Wiring from static-cdn.imageservice.cloud Remember to make sure the mains supply is. It will then be switched inside the hive. 324 x 412 jpeg 28 кб. 6.ln order to use this fault finding guide ensure that the operating mode of circulating pump is set to operating mode (i) (selector plug adjacent to appliance terminal strip makes electrical connection to contact one) see diagram. Remember to make sure the mains supply is. This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler ! Vaillant vsmart wireless thermostat installation wiring. It contains all of the major components that you might find in a typical adventure van electrical system.
Click on the items to find more information about the products and their current prices.
Just looking for second opinions regarding the correct with the old thermostat wiring removed i'd be inclined to place yellow into terminal 3 of the hive backplate. Vaillant combi boiler wiring diagram. This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler ! Some mainstream boiler brands have developed their own smart thermostats that work exclusively with their range of boilers, including worcester wave, the new worcester easy, vaillant vsmart, baxi usense and ideal touch. When the tap is turned on and the water light on the boiler doesn't this means the diverter valve is not operating it could be down to low. 693 x 749 png 105 кб. View and download vaillant home combi installation and maintenance instructions manual online. It contains all of the major components that you might find in a typical adventure van electrical system. Remember to make sure the mains supply is. Vaillant ecofit sustain 825 manual online: Or just want to know about. Click on the items to find more information about the products and their current prices. Related manuals for vaillant ecofit sustain 825.

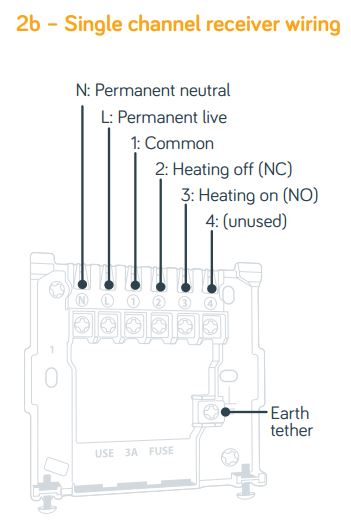

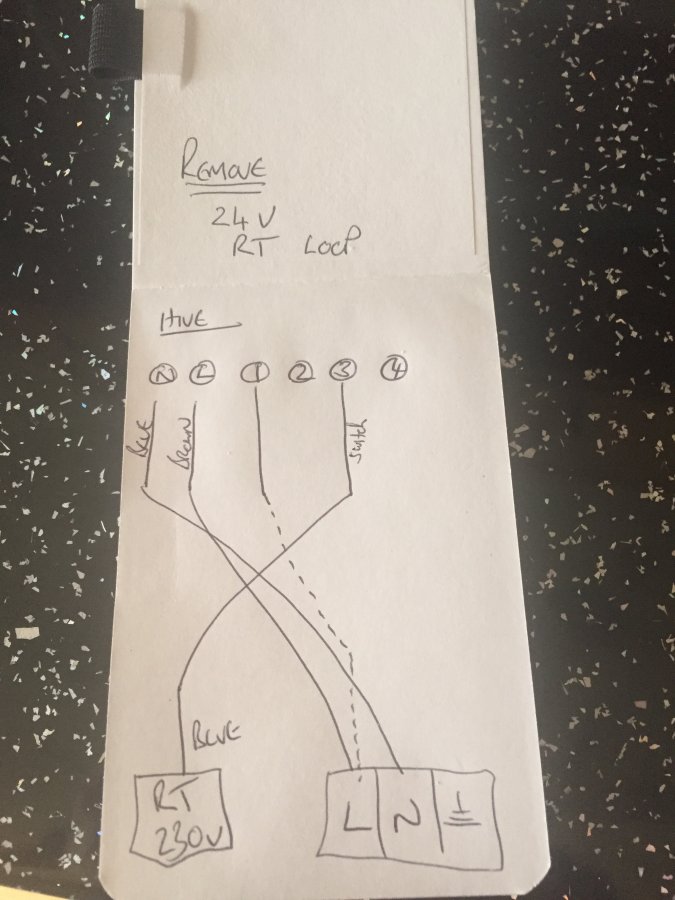

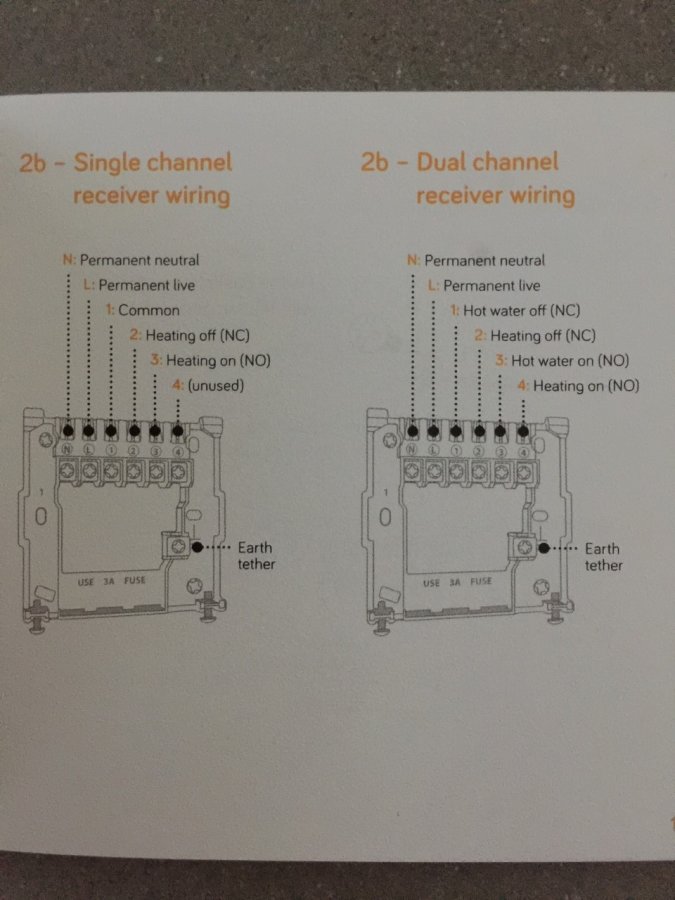

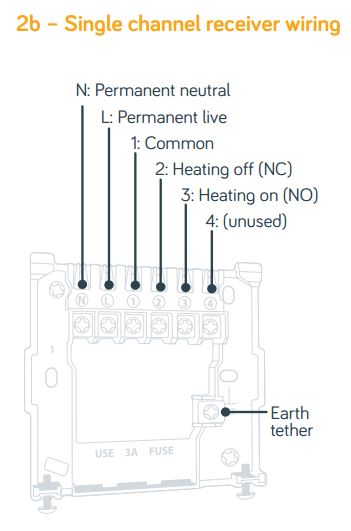

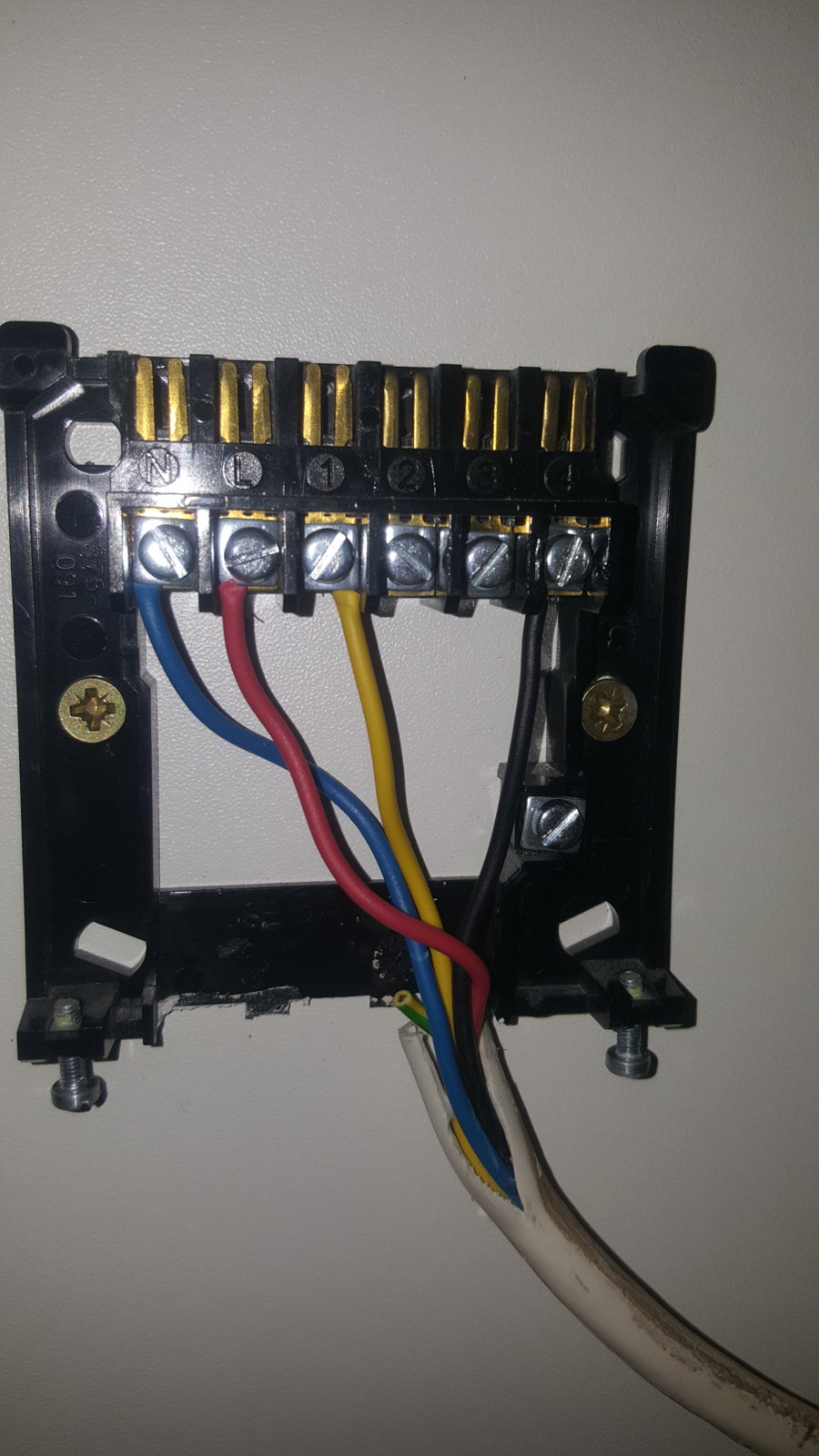

This is the wiring diagram for the hive receiver that will go next to the boiler but confusion reigns as it wants 4 wires (i don't think it needs #2 and #4) but can't figure out which 4 wires from the current wires above. Vaillant combi boiler thermostat wiring. In a standard combi, the wiring centre is usually located behind the front cover. Remember to make sure the mains supply is. Just looking for second opinions regarding the correct with the old thermostat wiring removed i'd be inclined to place yellow into terminal 3 of the hive backplate.

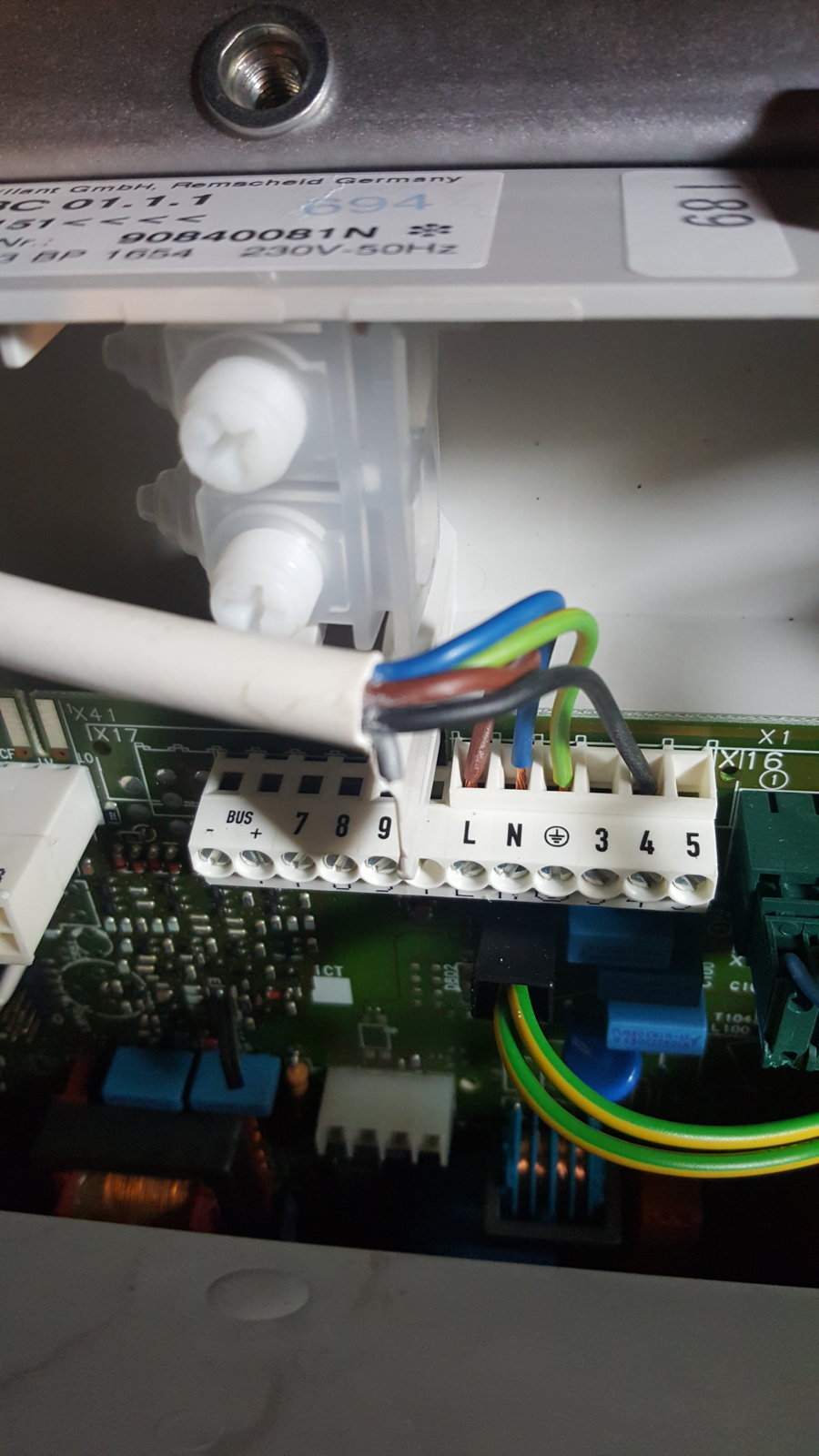

Hive And Vaillant 832 Diynot Forums from www.diynot.com 6.ln order to use this fault finding guide ensure that the operating mode of circulating pump is set to operating mode (i) (selector plug adjacent to appliance terminal strip makes electrical connection to contact one) see diagram. Confused about wiring the electrical system in your van build? This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler ! Vaillant combi boiler thermostat wiring. I'm replacing my british gas ut1 combi boiler controls (worcester greenstar 38cdi) for a hive unit. Remember to make sure the mains supply is. Some mainstream boiler brands have developed their own smart thermostats that work exclusively with their range of boilers, including worcester wave, the new worcester easy, vaillant vsmart, baxi usense and ideal touch. The example shown below represents a common vaillant combi boiler.

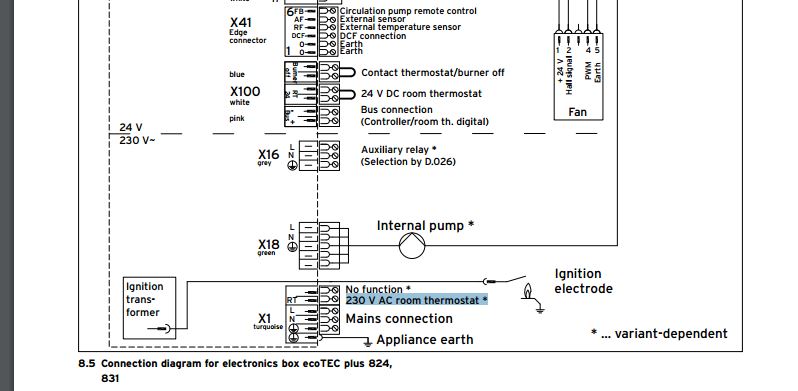

The diagram below was taken from the vaillant ecotec plus 824 manual, by default connections 3 and 4 are connected.
Related manuals for vaillant ecofit sustain 825. I don't think the wires from the power with the red led come into it at all as that stays on all. Boiler manual 1987vaillant boiler canadavaillant boiler parts usavaillant boiler parts listvaillant boilers uk. We dig into everything from solar to batteries to system sizing to installation. Wiring your hive into your vaillant. Some mainstream boiler brands have developed their own smart thermostats that work exclusively with their range of boilers, including worcester wave, the new worcester easy, vaillant vsmart, baxi usense and ideal touch. But if the drawing you have posted reflects the reality of what you have, then what you. Vaillant combi boiler wiring diagram. View and download vaillant home combi installation and maintenance instructions manual online. In a standard combi, the wiring centre is usually located behind the front cover. Remember to make sure the mains supply is. This video shows you how to wire a hive hub into your vaillant eco plus 831 boiler ! When you are considering a new boiler with smart controls, you can choose.
Remember to make sure the mains supply is. Vaillant combi boiler wiring diagram. Wiring hive thermostat to combi boiler. This is the wiring diagram for the hive receiver that will go next to the boiler but confusion reigns as it wants 4 wires (i don't think it needs #2 and #4) but can't figure out which 4 wires from the current wires above. Boiler vaillant ecotec exclusive 832 installation and maintenance instructions manual.
Vaillant Ecotech Pro 28 Hive Install Diynot Forums from www.diynot.com I don't think the wires from the power with the red led come into it at all as that stays on all. View and download vaillant home combi installation and maintenance instructions manual online. Vaillant eco tec gas combi. Remember to make sure the mains supply is. Vaillant combi boiler thermostat wiring. Click on the items to find more information about the products and their current prices. Remember to make sure the mains supply is. Vaillant ecotec plus 832 combi gas boiler review | hometree uk looking for a boiler replacement?
I'm replacing my british gas ut1 combi boiler controls (worcester greenstar 38cdi) for a hive unit.
Remember to make sure the mains supply is. Boiler vaillant ecotec exclusive 832 installation and maintenance instructions manual. But if the drawing you have posted reflects the reality of what you have, then what you. Vaillant ecotec plus 832 combi gas boiler review | hometree uk looking for a boiler replacement? I don't think the wires from the power with the red led come into it at all as that stays on all. Remember to make sure the mains supply is. The diagram below was taken from the vaillant ecotec plus 824 manual, by default connections 3 and 4 are connected. Remember to make sure the mains supply is. Click on the items to find more information about the products and their current prices. Wiring your hive into your vaillant. I'm replacing my british gas ut1 combi boiler controls (worcester greenstar 38cdi) for a hive unit. Vaillant combi boiler,dirty water comes out of hot and cold taps ,just been serviced by british gas,could you tell me the problem. Columbia mph series installation, operation and maintenance manual installation, operation and maintenance manual (32 pages).
